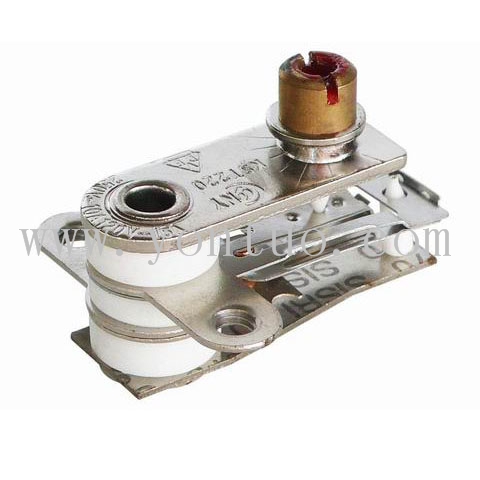

Product Code:£ºKST-206-A


Application

For household appliances such as :electric oven,electric fryer,dry / steam iron ,electric iron,waffle maker , hot tray , electric stove, cooking oven , kitchen ware and heaters…etc.

Specifications

Function : Single pole, the contact opens when the temperature is reached.
Standard Rating :AC250V/10A,125V AC 16A
Number of Automatic Cycles for each Automatic Action:100,000 cycles
Maximum Temperature : 250¡æ
Temperature Setting Range :  0 - 250¡æ
Tolerance of Operation Range : ± 5¡æ

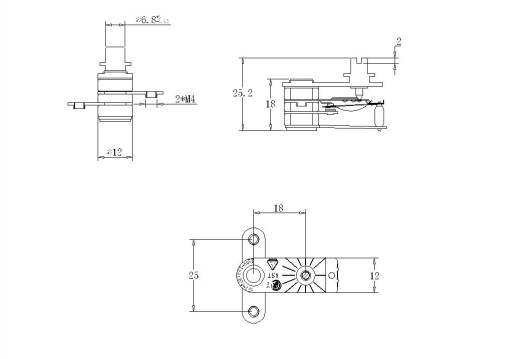

Drawing:
