Product Code:KST-300C


Application

Mainly used for baby warmer,heating installation.

Specifications

Function : Single pole, the contact opens when the temperature is reached.
Standard Rating :AC250V/10A,125V AC 16A
Number of Automatic Cycles for each Automatic Action:100,000 cycles
Maximum Temperature :  250
Temperature Setting Range :0 - 250
Tolerance of Operation Range : ± 5

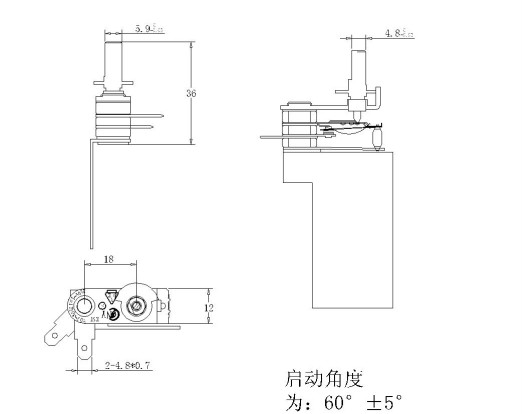

Drawing:
